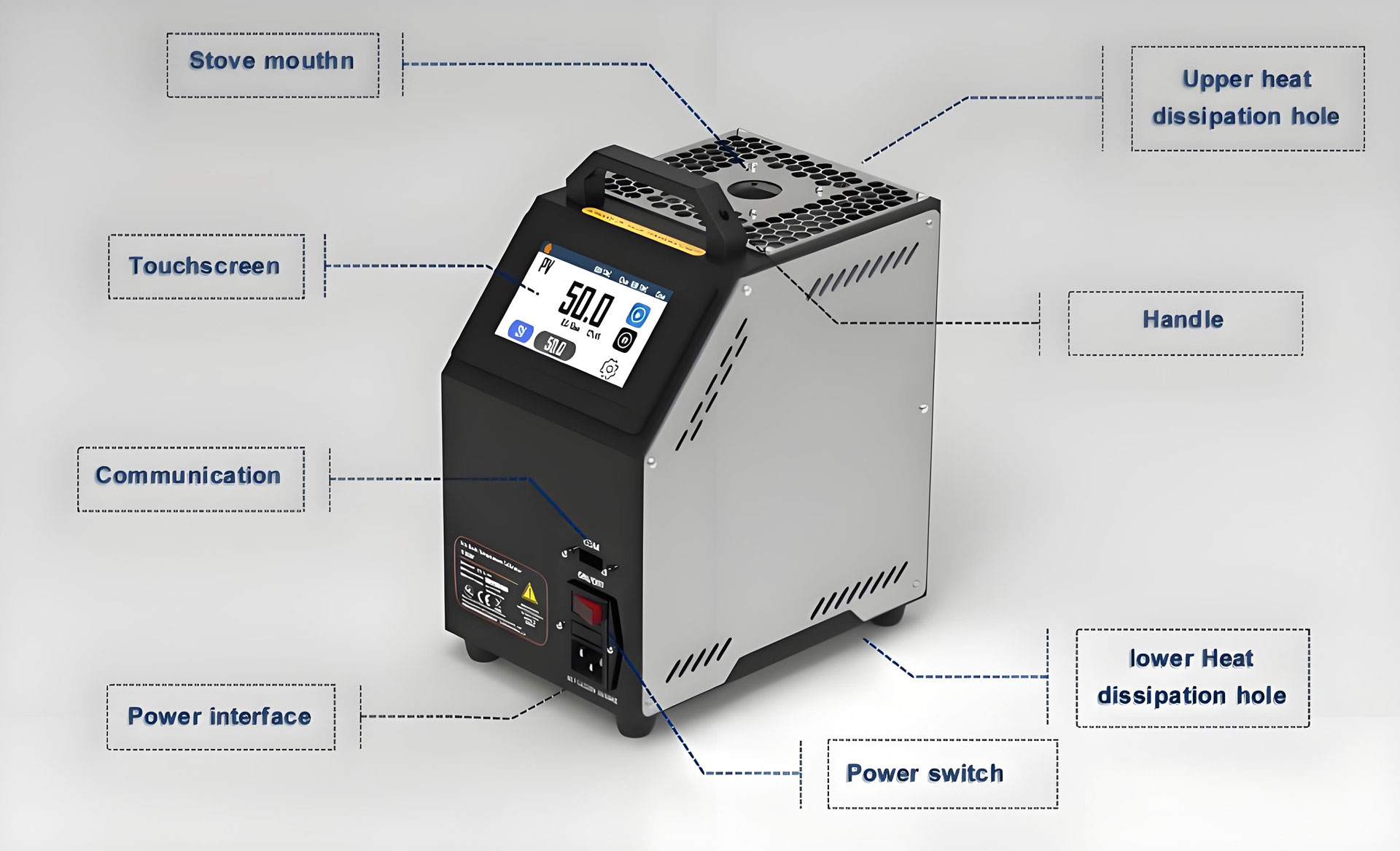

Portable Dry Block Calibrator（-25℃~140℃） dry block calibrator
Dry block furnaces can provide a stable, uniform, and accurate temperature environment (temperature field), easy to carry, temperature stabilization is fast and calibration speed is improved. The portability of the dry-body furnace allows it to be calibrated on-site, thereby solving the difficulty of transportation and movement, can be used to easily calibrate temperature sensors, thermometers, expansion thermometers, thermocouples, thermal resistors, and etc.
insert
Model | BSC-ST-AB | BSC-ST-AD |
Temperature range | -25℃~140℃ | 35℃~600℃ |
Display resolution | 0.1℃ | |
Stability of display | 0.1~0.3℃/10min | |
Factory calibration accuracy | ±0.3-0.5℃%（Open calibration mode users can calibrate to higher accuracy） | |
Check hole depth | 140mm | 135mm |
Diameter of insert | φ24.8mm | φ24.8mm |
Calibration hole diameter | φ3~12mm（customizable） | |
Dimension (L*W*H) | 235*170*245mm （Add a handle height of 280mm) | |
Weight | <5Kg | |
Power supply | AC 110/220V <600W | AC 110/220V <800W |
Working conditions | 22±3℃ 20~55%RH | |
