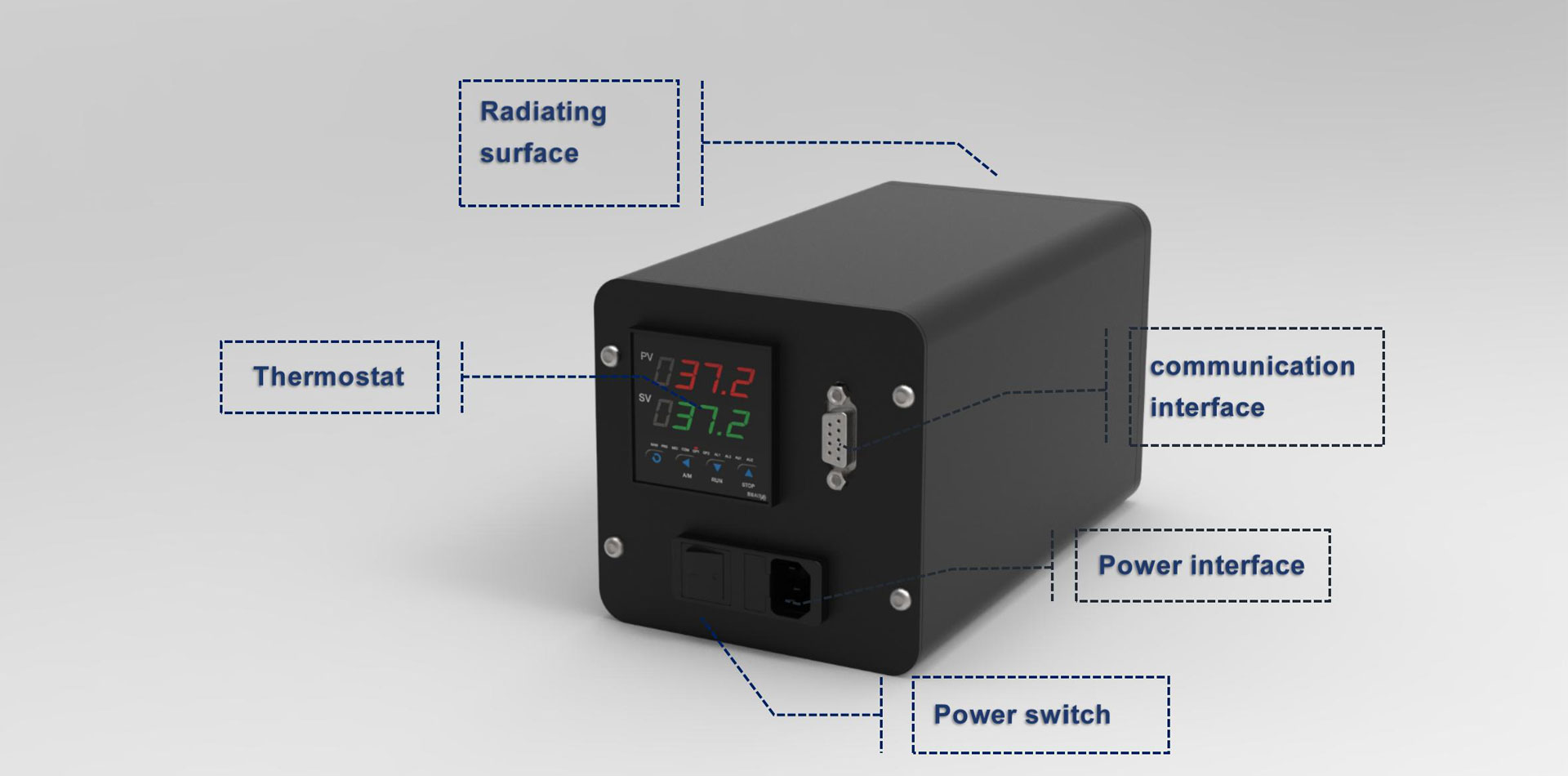

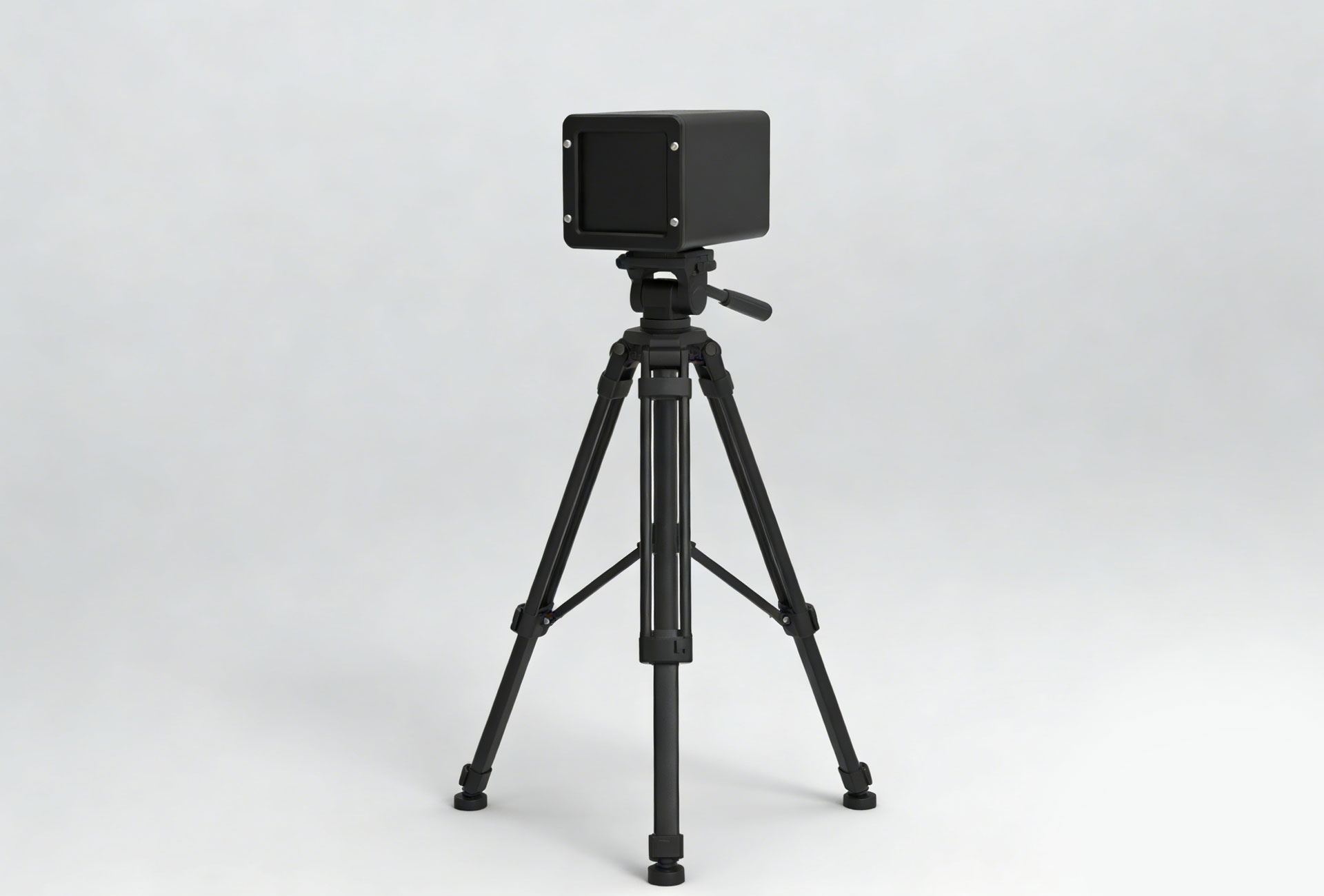

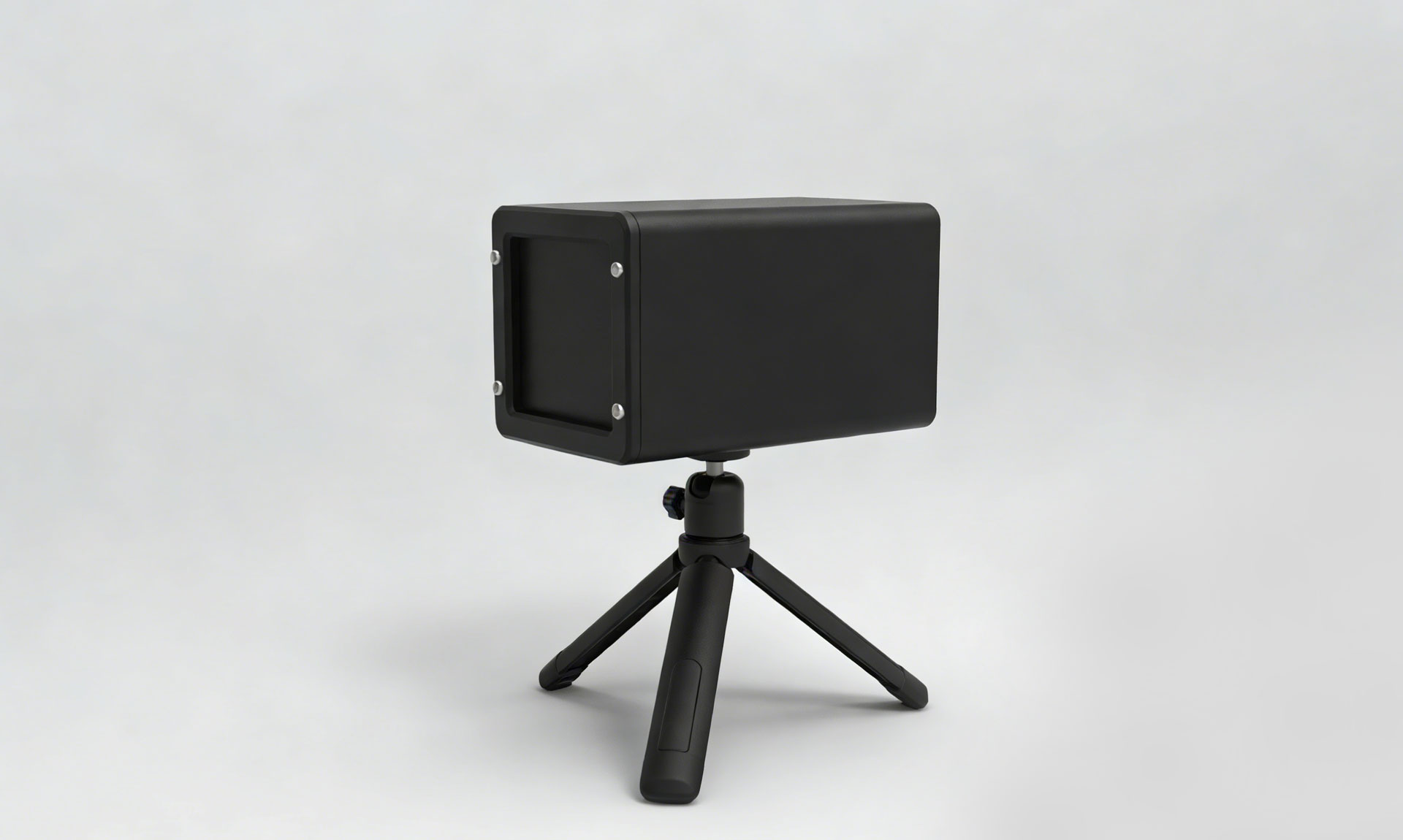

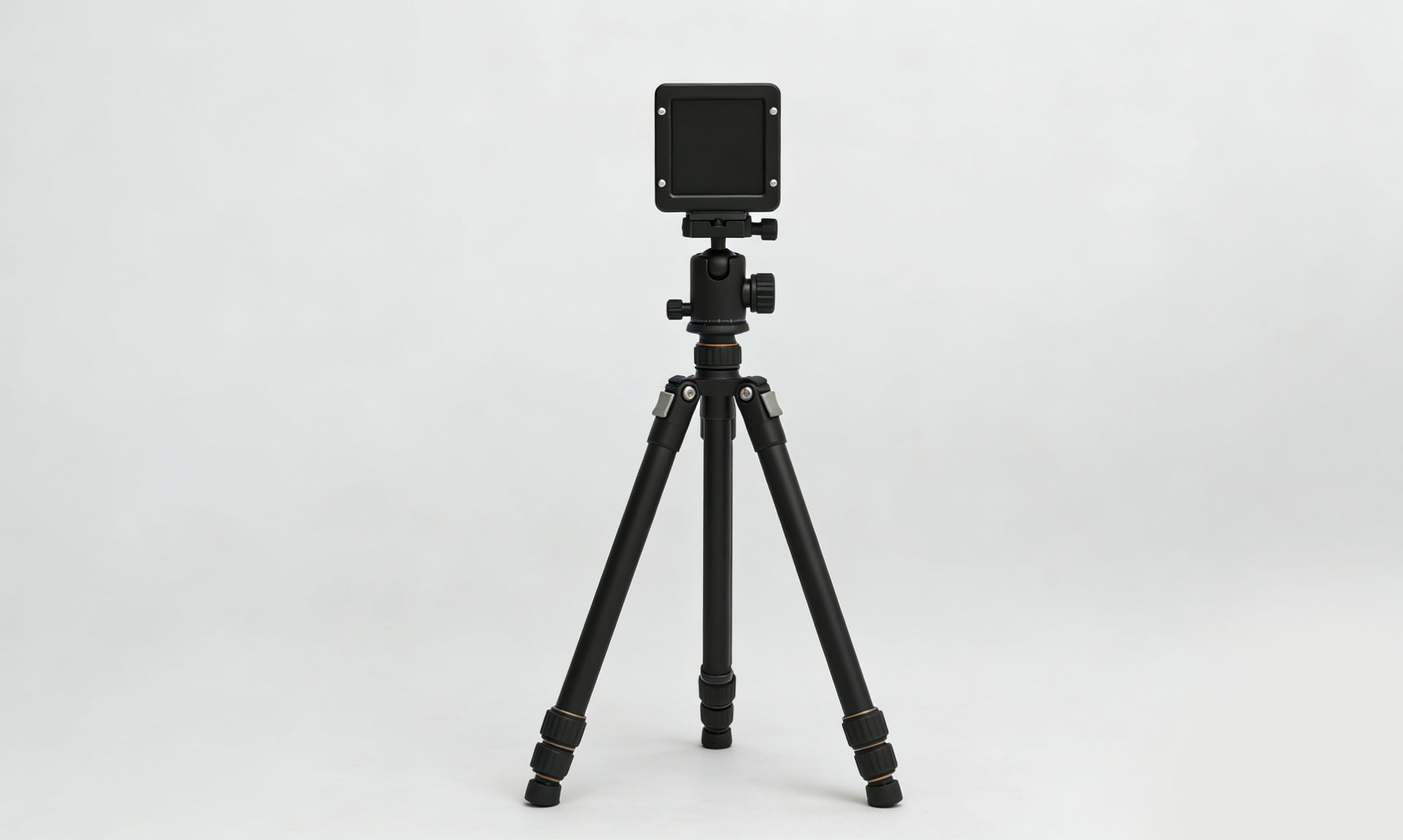

Thermal Imaging Infrared Temperature Calibration Equipment (30℃~50℃)
Blackbody furnace is mainly used to calibrate radiation thermometers, infrared thermometers and radiation temperature sensing detectors. It is not only suitable for calibration of radiation thermometers in laboratories of measurement institutions at all levels, but can also be used for on-site calibration.
Model | BSC-CM | |
Temperature range | 30~50℃（customizable) | |
Display resolution | 0.1℃ | |
Stability of display | ±0.1~0.2℃/10min | |
Temperature Uniformity | ±0.1~0.2℃%t（In 2/3 of the central area） | |
Emissivity | 0.97 ±0.02（customizable) | |
Radiating Surface depth | 8mm (custmizable) | |

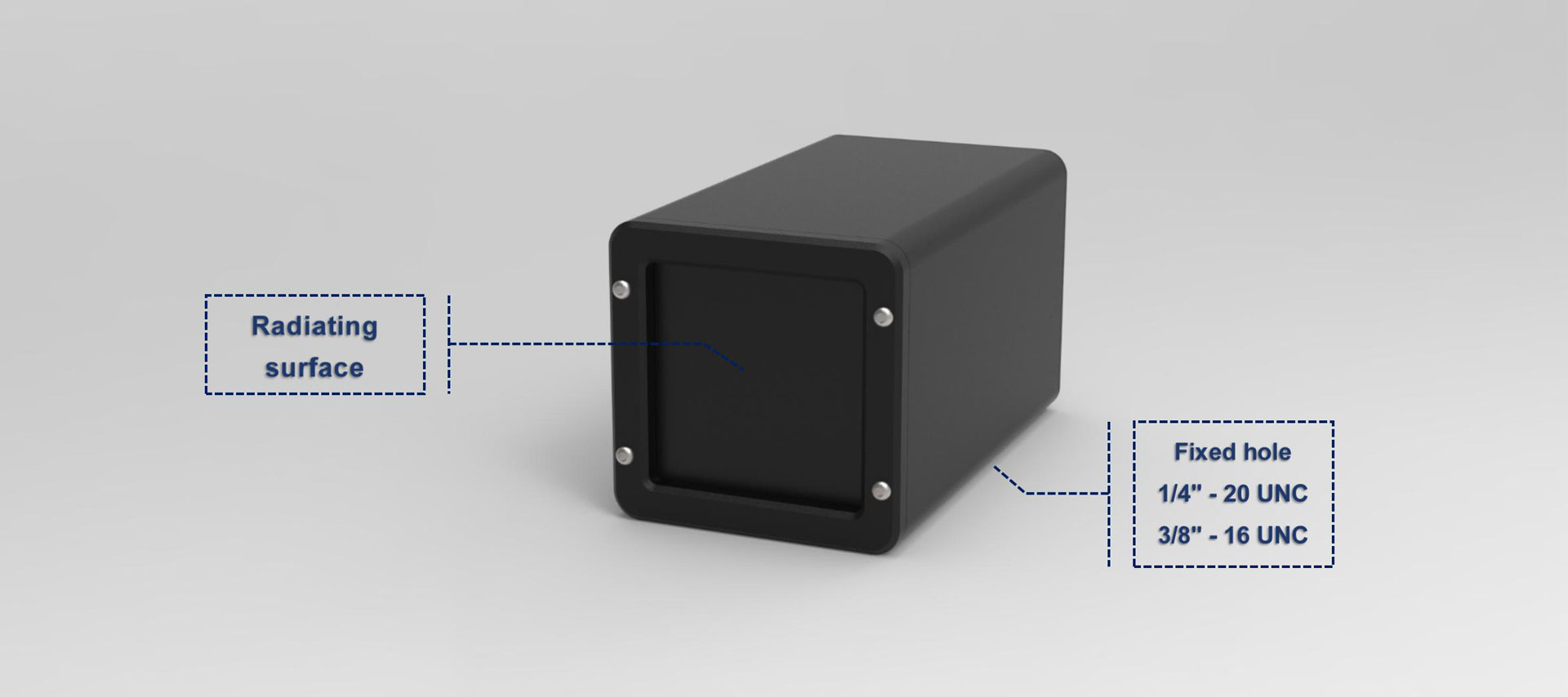

Radiating Surface | 10X10mm~80x80mm（customizable) | |
Dimension (L*W*H) | 180*108*108mm (custmizable) | |
Weight | <1.2Kg | |
Power supply | AC 110/220V 100W | |
Working conditions | 0~30℃ 20~75%RH | |
